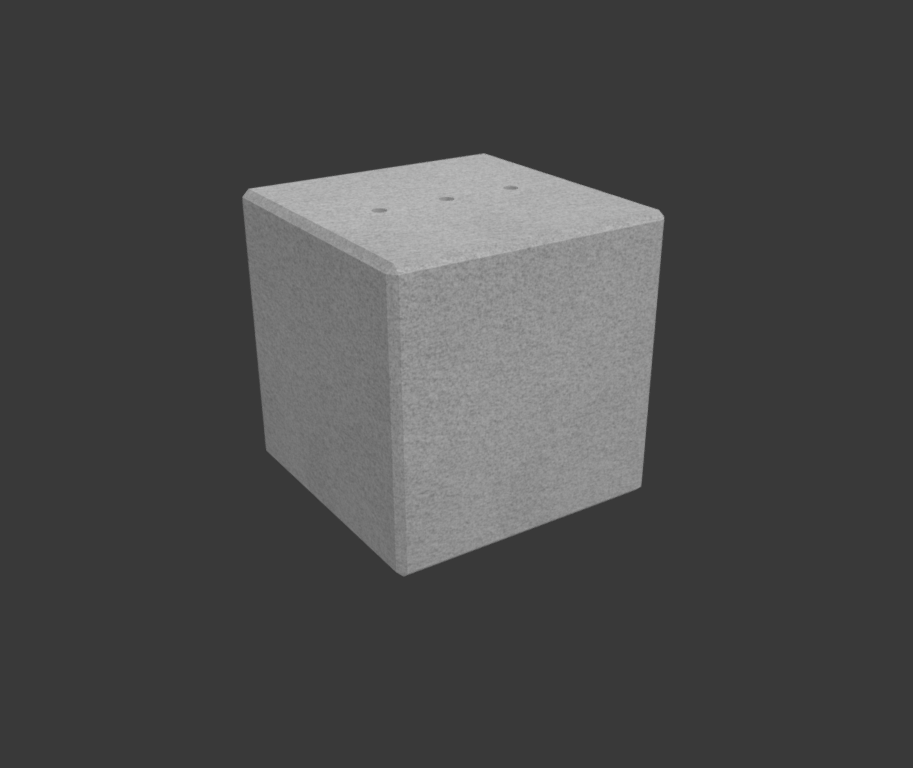

Post Base
800mm x 800mm

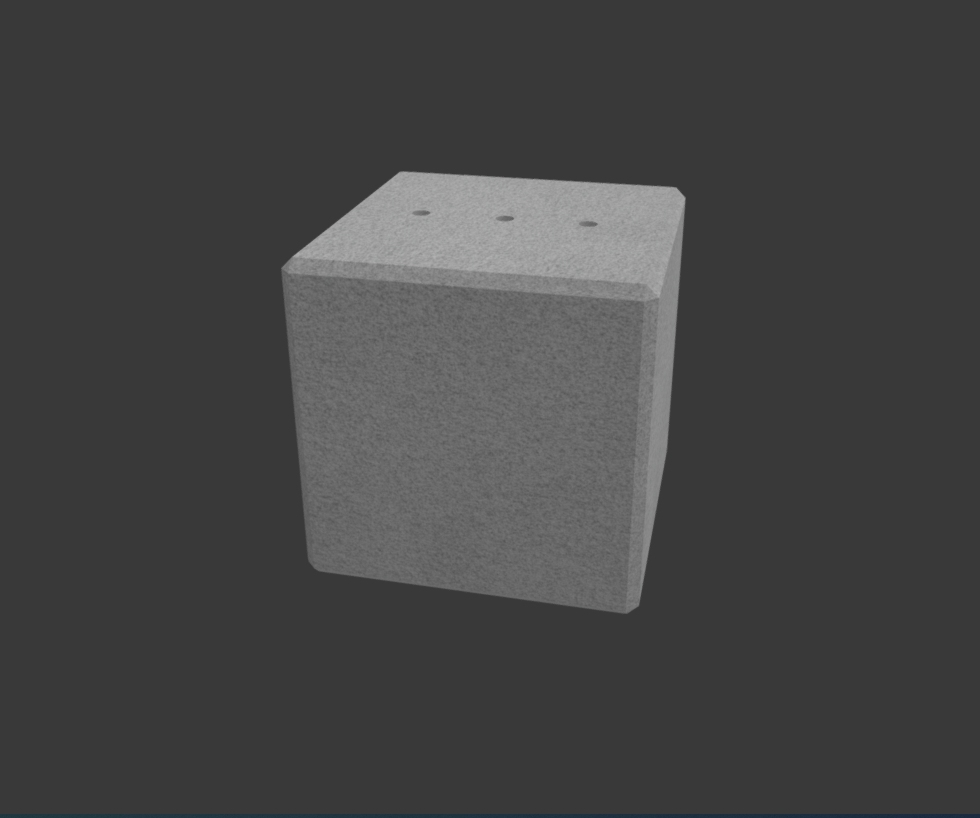

Post Base
600mm x 600mm
1. Handling
– Volume of Standard Type 1 (600mm x 600mm x 600mm) block is 0.216m³ & a weight of 508 kg (based on 2350kg/m³)
– Volume of Standard Type 2 (800mm x 800mm x 800mm) block is 0.512m³ & a weight of 1200 kg (based on 2350kg/m³)
– Lifting system is by means of a 180mm long spherical pin anchor rated at 5.0 tonnes with an F.O.S. of 3
– Lifting is achieved by use of 2No 2.5T rated pin anchors ring clutch or combination ring clutch only and should comply with the Lifting Operation & Lifting Equipment Regulations 1998 (LOLER)
2. Concrete
– Characteristic 28 day cube strength = 50 N/mm² min.
– Concrete is Class A1 Fire Resistant in accordance with clause 4.3.4.4 of EN 13369
3. Manufacture
– Manufactured to BS EN 13369:2013
– Tolerances to BS EN 13670:2009
4. Physical & Chemical Properties
– Appearance: Grey in Colour
– Other Chemical Properties: Not Applicable
5. Manufacture Tolerances
– Length: ± 5mm
– Width: ± 5mm
– Height: ± 5mm

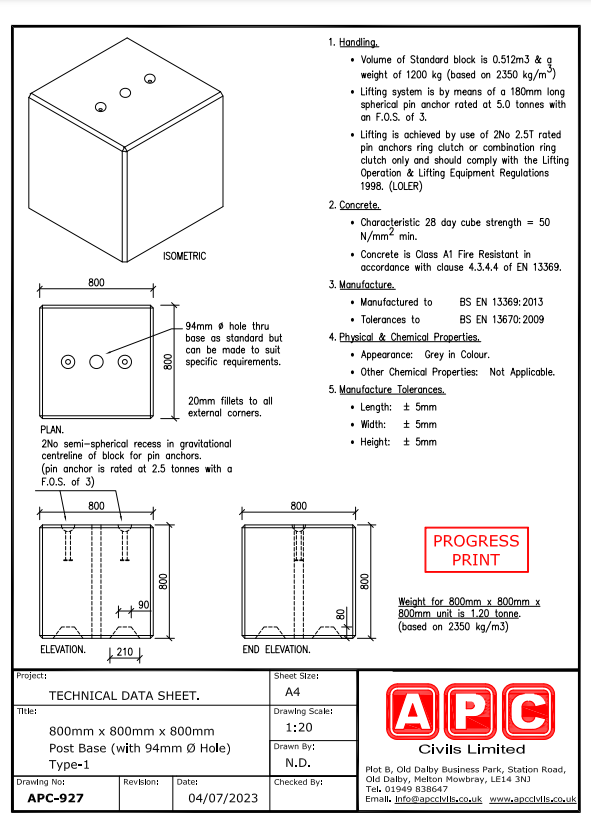

 | 800mm x 800mm x 800mm Post Base (with 94mm Ø Hole), Type 1. |

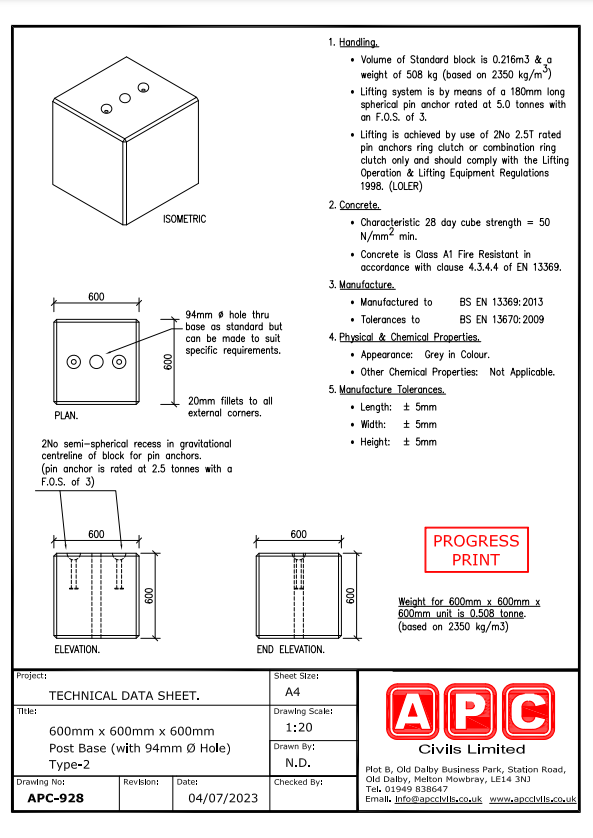

 | 600mm x 600mm x 600mm Post Base (with 94mm Ø Hole), Type 2. |
